Forensics - Whack-a-frog

Come play a game of Whack-a-Frog here and let all your anger out on the silly msfrogs. Due to ?lawsuits by Murdoch, we were forced to add DRM protection, which has allowed us to detect a player distributing copyrighted media. Thankfully, we took a pcap: can you make out what he was sharing? Make sure that anything you find is all typed in UPPERCASE and is wrapped like corctf{text}. Best of luck and enjoy whacking some frogs!

Created By: jammy + chop0

In this unique forensics challenge we are given both a website and a pcap file to examine. From the description, we are supposed to find out what a copyrighted media was shared by a user. To begin, let’s explore the site a bit before we get into any of the pcap analysis.

Whack-a-frog

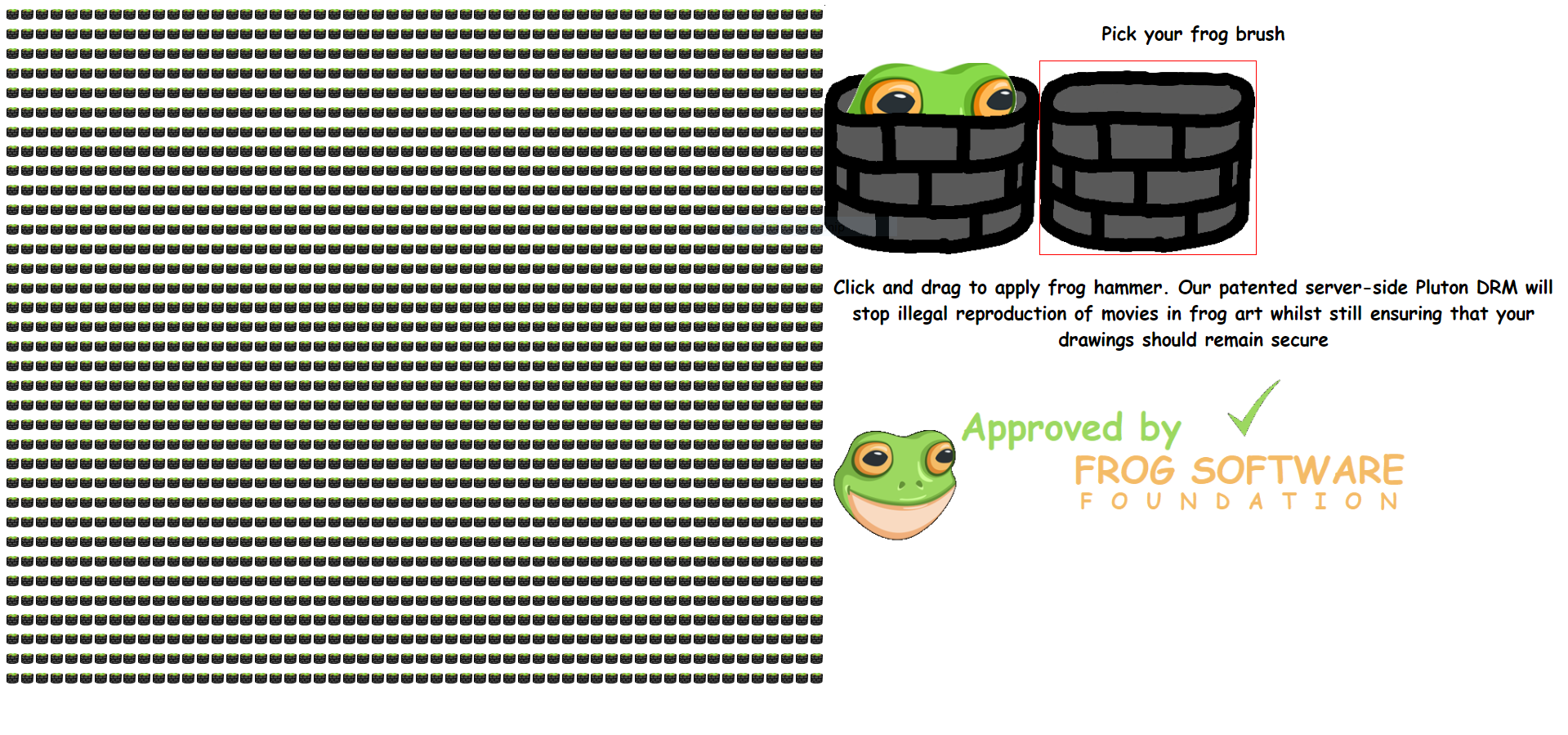

Figure 1: The Website for Whack-a-frog



The site is laid out like a very big game of whack-a-mole. Except, the moles are replaced with ms-frog, the mascot for this competition. There isn’t much game going on in this game. But, the site does mention the DRM from the description that stops us from using this app to reproduce media.

Network Requests

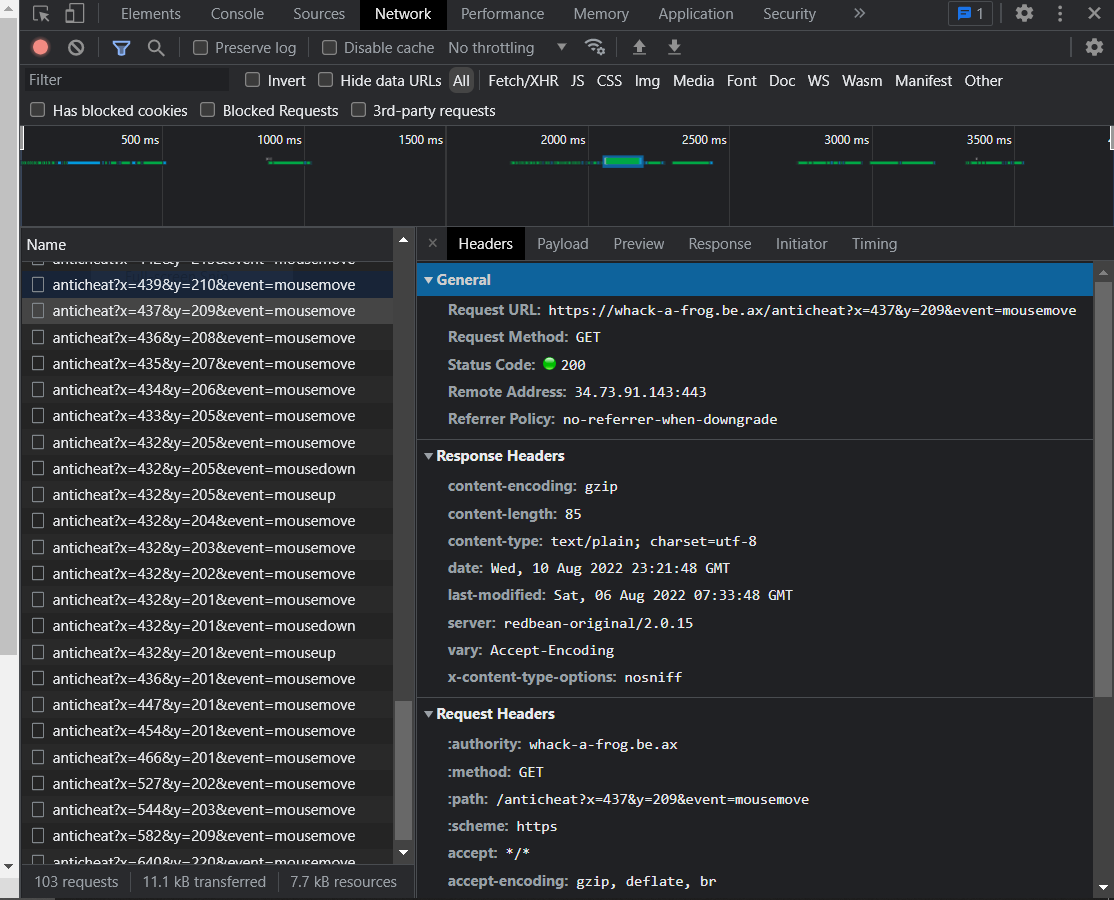

Figure 2: A View of the Network Tab on Chrome



Going along with this idea, we must be sending some sort of telemetry data to the server to stop us from recreating art with whack-a-frog. When I opened up the network tab of dev tools, I noticed just that. Like in Figure 2, the site sends GET requests to record my mouse coordinates and movements (with event=mousemove) and my clicks (with event=mouseup or event=mousedown).

Now let’s check out that pcap and see if anything relates back to it.

pcap heirarchy

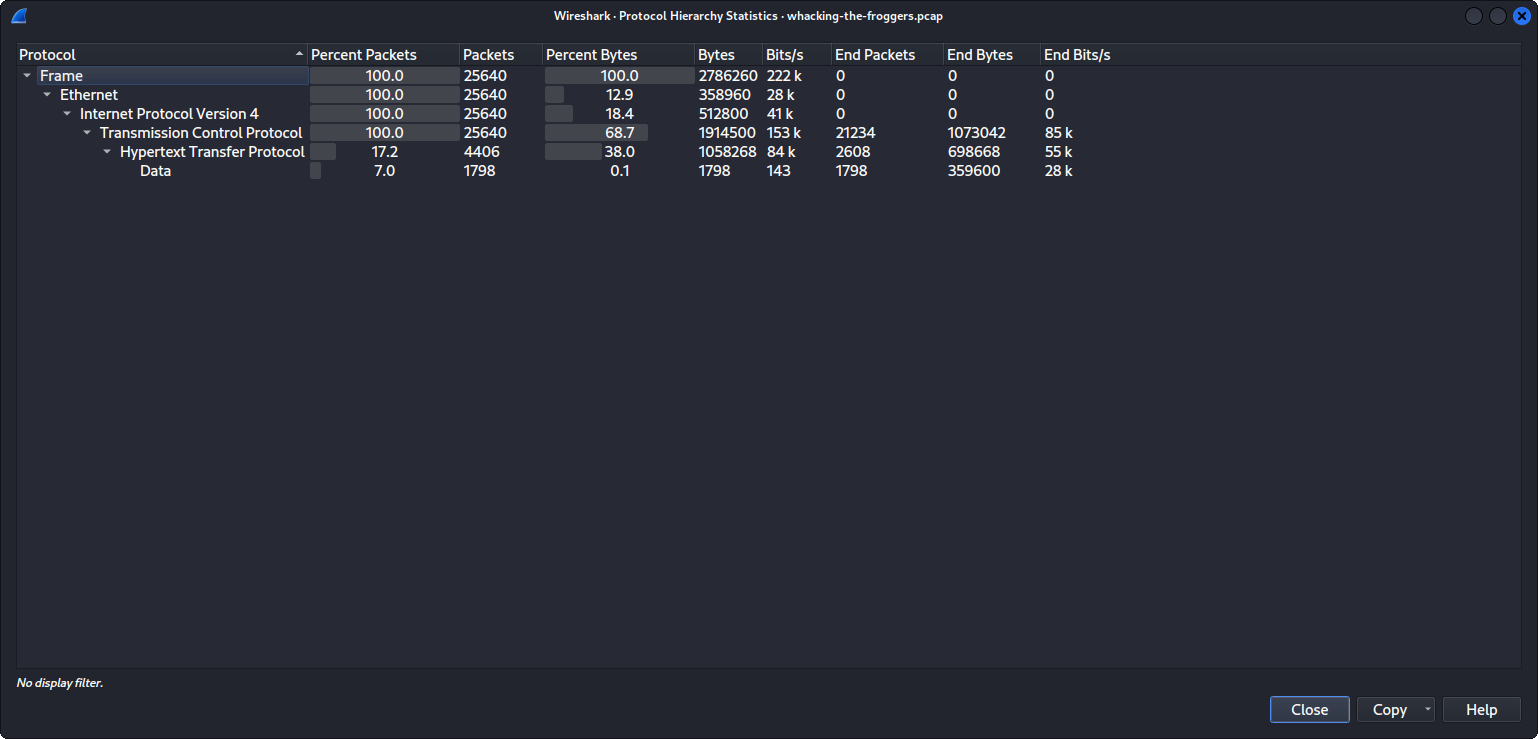

Figure 3: The Protocol Heirarchy View of whacking-the-froggers.pcap in Wireshark



So, the pcap file contains not much besides HTTP packets. But, given that we have a site with this challenge, that seems pretty on target.

HTTP Requests

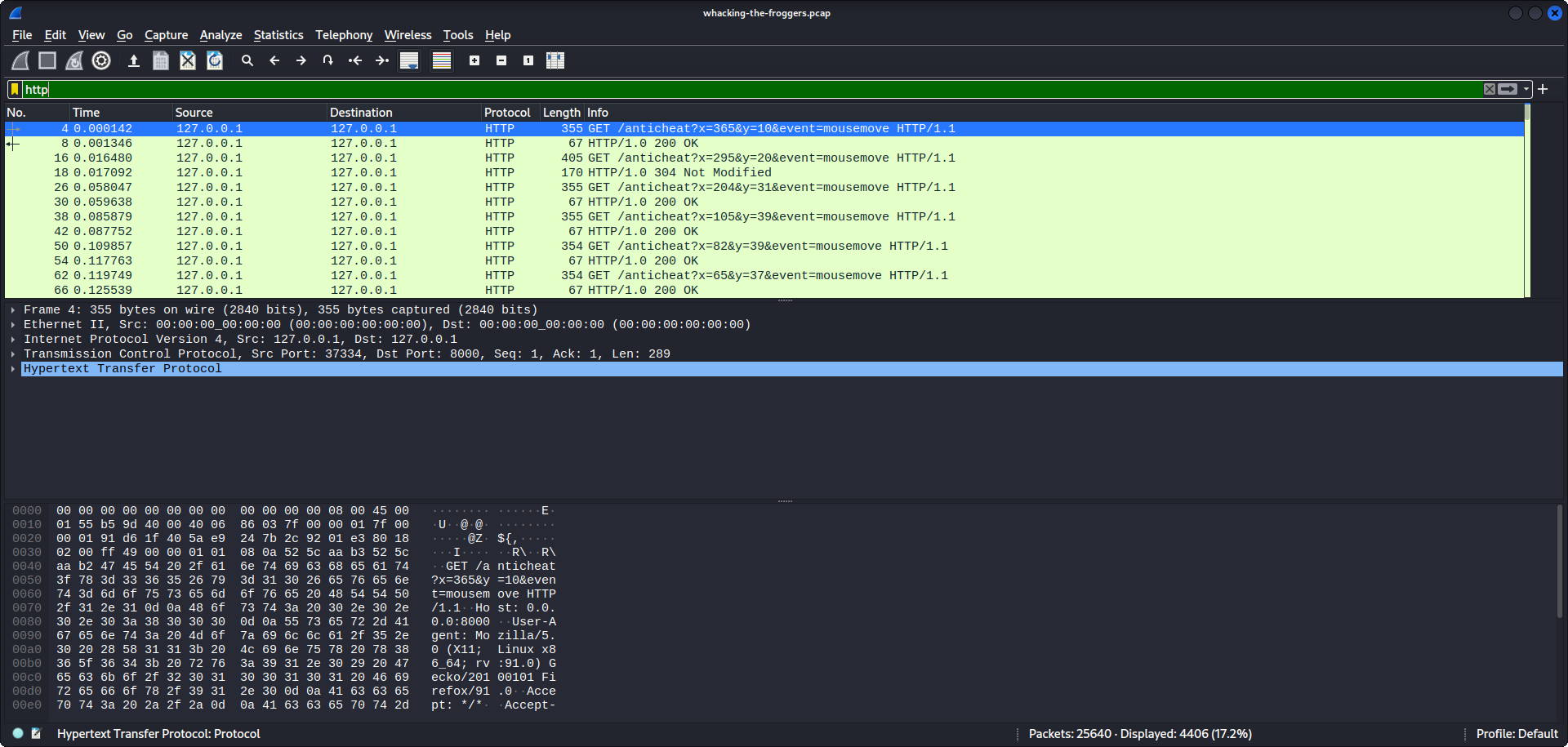

Figure 4: HTTP Requests From whacking-the-froggers.pcap in Wireshark



Sure enough, the same requests we saw on the site can be found all over the capture. Given all this, surely the goal here was to find out what the user “drew” on the whack-a-frog game. With the capture, we are given all the coordinates we need to follow along with the “pen strokes” of the user. The main challenge is just extracting it all and displaying it.

from pcapkit import extract
from matplotlib import pyplot as plt


moves = list()
extraction = extract(fin='whacking-the-froggers.pcap', nofile=True, tcp=True, strict=True)
for datagram in extraction.reassembly.tcp:
    if b'GET /anticheat' in datagram.payload:
        x = datagram.payload.split()
        y = x[1][11:]
        moves.append(y.split(b'&'))

x_coords = list()
y_coords = list()
record = False
for move in moves:
    if move[2] == b'event=mouseup':
        record = False
    elif move[2] == b'event=mousedown':
        record = True
    if record:
        x_coords.append(int(move[0][2:]))
        y_coords.append(int(move[1][2:]))
if len(x_coords) > 0:
    plt.xlim([0, 600])
    plt.ylim([0, 400])
    plt.gca().invert_yaxis()
    plt.plot(x_coords, y_coords)
    plt.show()

I came up with a quick Python script to extract and plot the data. The first challenge of the script is getting all that HTTP data. Luckily, pcapkit makes that fairly easy and allowed me to narrow the packet list down to only HTTP and then those with the /anticheat path. From there it’s as simple as extracting the x and y coordinates from the string.

Next, all that is basically left is plotting all the data points. Now, at this point I wasn’t too sure if there was any extra data between pen strokes. Like, when the user unclicks the mouse, do they jiggle it around a bunch. So to be safe, I removed all the data after a mouseup command was issued and recorded all the data after a mousedown command.

Graph Coordinates

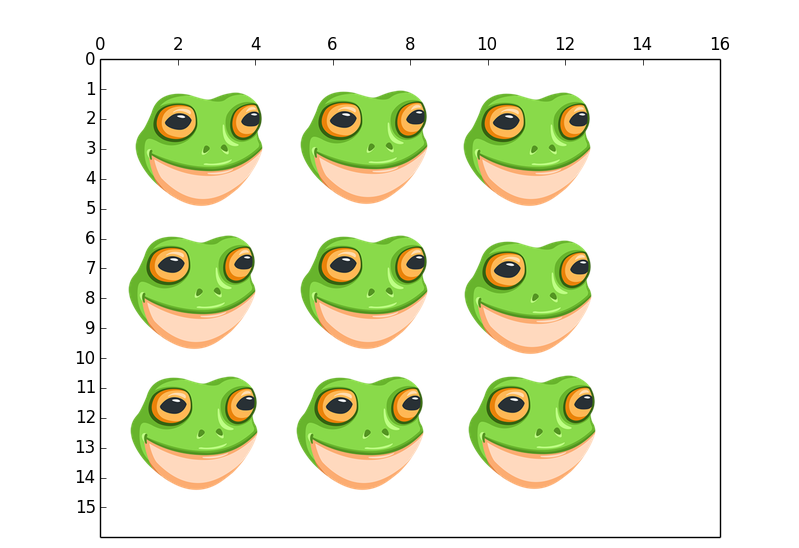

Figure 5: An Example Diagram of the Coordinate System Used by whack-a-frog



One important thing to notice is that the coordinate system the site uses a coordinate system where the origin (x = 0, y = 0) is in the top left. So if we just plot our graph normally, the image will be upside down. As a funny little side note, I spent an embarassing amount of time trying to decipher an upside down drawing before I remembered I had to flip my graph.

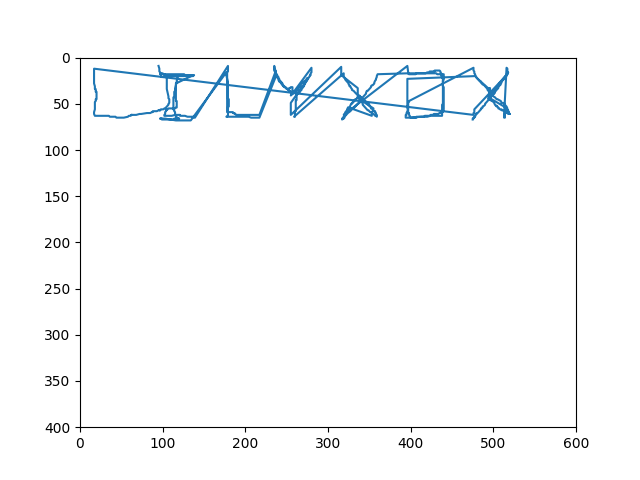

Figure 6: The Drawing Graphed by the Python Script



Anyway, after a bit of work, the script will shoot out a graph of some letters the user wrote down. If we look carefully enough, it looks like it says LILYXOX. Which are the letters we need to fill in the flag and solve the challenge.

corctf{LILYXOX}
